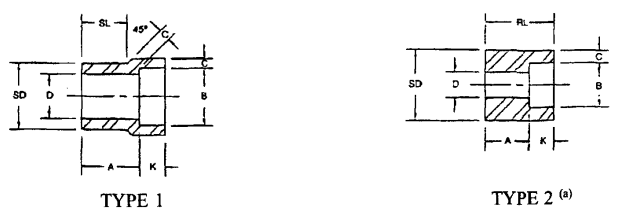

NOM PIPE SIZE	TYPE (a)		SOCKET		SHANK DIA SD	LAYING LENGTH A		BORE D		WALL MIN C		LENGTH
												SL		RL (MIN)
	3M	6M	DIA B	DEPTH MIN K		3M	6M	3M	6M	3M	6M	3M	6M	3M	6M
3/8 X 1/4	1	1	.565	.38	.675	.75	.84	.364	.250	.149	.181	.56	.62
1/2 X 3/8	1	1	.700	.38	.840	.81	.91	.493	.359	.158	.198	.62	.62
X 1/4	1	1	.565	.38	.840	.81	.81	.364	.250	.149	.181	.62	.62
3/4 X 1/2	1	1	.865	.38	1.050	.88	1.00	.622	.464	.184	.235	.69	.75	1.06
X 3/8	2	1	.700	.38	1.050	.62	0.88	0.493	0.359	0.158	0.198		0.75	1.06	126
X 1/4	2	2	.565	.38	1.050	.69	0.88	0.364	0.250	0.149	0.181
1 X 3/4	1	1	1.075	.50	1.315	.94	1.12	0.824	0.612	0.193	0.274	.75	0.81
X 1/2	2	1	.865	.38	1.315	.62	1.12	0.622	0.464	0.184	235		0.81	1.12
X 3/8	2	2	.700	.38	1.315	.69	0.88	0.493	0.359	0.158	0.198			1.12	1.31
X 1/4	2	2	.565	.38	1.315	.75	0.94	0.364	.2SO	0.149	0.181			l.12	1.31
1 1/4 X 1	1	1	1.340	.50	1.660	1.00	1.19	1.049	.815	0.224	.312	.81	0.88
X 3/4	2	2	1.075	.50	1.660	.69	0.81	0.824	0.612	0.193	0.274			1.25	137
X 1/2	2	2	.865	.38	1.660	.75	0.88	0.622	0.464	0.184	235			1.25	1.31
X 3/8	2	2	.700	.38	1.660	.81	0.94	0.493	0.359	0.158	0.198			1.25	1.31
X 1/4	2	2	.565	.38	1.660	.88	1.00	0.364	.250	0.149	0.181			1.25	1.37
1 1/2 X 1 1/4	1	1	1.685	.50	1.900	1.12	1.38	1.380	1.100	.239	0.312	.88	1.00
X 1	2	1	1.340	.50	1.900	.69	1.15	1.049	0.815	0.224	0.312		1.00	1.31
X 3/4	2	2	1.075	.50	1.900	.75	1.00	0.824	0.612	0.193	.274			1.31	1.56
X 1/2	2	2	.865	.38	1.900	.81	1.06	0.622	0.464	0.184	.235			1.31	1.56
X 3/8	2	2	.700	.38	1.900	.88	1.12	0.493	0.359	0.158	0.198			131	1.56

NOM PIPE SIZE	TYPE (a)		SOCKET		SHANK DIA SD	LAYING LENGTH A		BORE D		WALL MIN C		LENGTH
												SL		RL (MIN)
	3M	6M	DIA B	DEPTH MIN K		3M	6M	3M	6M	3M	6M	3M	6M	3M	6M
2 x 1 1/2	I	- I	1.925	0.50	2.375	1.25	1.53	1.610	1.338	0.250	0.351	1.00	1.13
x 1 1/4	2	2	1.685	0.50	2.375	0.81	0.94	1.380	1.160	0.239	0.312			1.50	1.62
x 1	2	2	1.340	0.50	2.375	0.88	l.00	1.049	0.815	0.224	0.312			1.50	1.62
x 3/4	2	2	1.075	0.50	2.375	0.94	1.06	0.824	0.612	0.193	0.274			1.50	1.62
x 1/2	2	2	0.865	0.38	2.375	1.00	1.12	0.622	0.464	0.184	0.235			1.50	1.62
2 1/2 x 2	I	I	2.416	0.62	2.875	1.81	1.68	2.067	1.687	0.273	0.430	1.50	1.25
x l 1/2	2	2	l.92S	0.50	2.875	1.38	1.38	1.610	1.338	.25(	0.351			2.12	2.12
x 1 1/4	2	2	1.685	0.50	2.875	1.44	1.44	1.380	1.160	.23S	0.312			2.12	2.12
x 1	2	2	1.340	0.50	2.875	1.50	1.50	1.049	0.815	224	0.312			2.12	2.12
x 3/4	2	2	1.075	0.50	2.875	1.56	1.50	0.824	0.612	0.193	0.274			2.12	2.12
3 x 2 J/2	J	I	2.916	0.62	3.500	l.50	2.25	2.469	2.125	0.345	0.469	1.25	1.75
x 2	2	2	2.416	0.62	3.500	1.00	1.25	2.067	1.687	0.273	0.430			I.87	2.12
x I 1/2	2	2	l.92S	0.50	3.500	1.12	1.25	1.610	1.338	0.250	0.351			l.87	2.12
x l 1/4	2	2	l.685	0.50	3.500	1.19	l.25	l.380	1.160	0.239	0.312			1.87	2.12
x I	2	2	1.340	0.50	3.500	1.25	1.25	l.049	0.815	0.224	0.312			1.87	2.12
4 x 3	2	I	3.545	0.62	4.500	1.31		3.068		0.375				2.38
x 2 1/2	2	2	2.916	0.62	4.500	1.50		2.469		0.345				2.38
x 2	2	2	2.416	0.62	4.500	1.50		2.067		0.273				2.38
x 1 1/2	2	2	1.925	0.50	4.500	l.62		1.610		0.250				2.38
x 1 1/4	2	2	1.685	0.50	4.500	1.69		l.380		0.239				2.38
